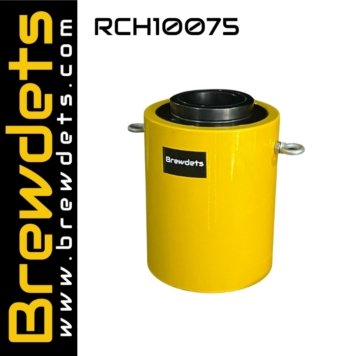

Hydraulic Cylinder 100 Ton Hollow Plunger RCH10075
Rp 12.240.000| Kode | RCH10075 |
| Stok | Tersedia (100) |
| Kategori | Single Hollow Jack Cylinder |
EXCLUDE PPN 11%
Model no. : RCH-10075
Tons(T) : 100
Effective Area(cm²): 135.2
Oil Capacity (cm³): 1015
Travel(mm): 75mm
Inner Dia(mm): 165mm
Outer Dia(mm):208mm
Collapsed Height(mm): 260mm
Centre Bore(mm): 80mm
Weight(kg): 60.3
Pump: CP-700A
Nomor Model: RCH-10075
Ton (T): 100
Luas Efektif (cm²): 135,2
Kapasitas Oli (cm³): 1015
Jarak (mm): 75mm
Diameter Dalam (mm): 165mm
Diameter Luar (mm): 208mm
Tinggi Terlipat (mm): 260mm
Lubang Tengah (mm): 80mm
Berat (kg): 60,3
Pompa: CP-700A
Hydraulic Cylinder 100 Ton Hollow Plunger RCH10075
Product Description
1. Hollow plunger design allows for both Pull & push forces.
2.Single acting spring return.
3.Baked enamel finish for increased corrosion resistance.
4.High flow ZG 3/8”male coupler & dust cap included in all cylinders.
5.High strength alloy steel for durability.
Customized cylinders can be made against order.
Deskripsi Produk
1. Desain plunger berongga memungkinkan gaya tarik & dorong.
2. Pegas balik aksi tunggal.
3. Lapisan enamel panggang untuk meningkatkan ketahanan korosi.
4. Kopling male ZG 3/8” aliran tinggi & tutup debu disertakan di semua silinder.
5. Baja paduan berkekuatan tinggi untuk daya tahan.
Silinder khusus dapat dibuat berdasarkan pesanan.
