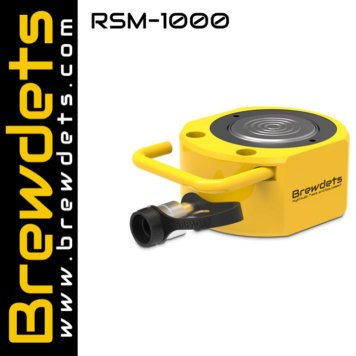

Hydraulic Cylinder 100 Ton Low Height RSM1000
Rp 9.180.000| Kode | RSM1000 |
| Stok | Tersedia (100) |
| Kategori | Low Height Cylinders |
Tekanan Operasional Maksimum (bar): 700
Kelas Kapasitas (tonase): 100
Kapasitas Silinder Maksimum Maju (kN): 887
Langkah (mm): 16
Tinggi Terlipat A (mm): 85
Tinggi Terentang B (mm): 101
Tipe Pengembalian: Aksi Tunggal, Pengembalian Pegas
Tipe Plunger: Padat
Material: Baja
Luas Efektif Silinder Maju (cm2): 126,7
Kapasitas Oli Maju (cm3): 203
Perawatan Permukaan: Cat
Kopler: Kopler CR400
Berat (kg): 14,5
Hydraulic Cylinder 100 Ton Low Height RSM1000
RSM-Series Low Profile Hydraulic Cylinders provide superior durability, safety, and quality in a compact and convenient format. They’re the perfect choice for general lifting and production applications where space is limited.
A low collapsed height, short stroke, and flat sides enable safety and stability in both vertical and horizontal orientations.
RSM-Series Cylinders are a popular choice. Not only for general lifting, but also for production applications. Two through mounting holes in each cylinder make it easy to clamp onto machinery and other fixtures.
Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RSM cylinders are different and include a powerful return spring, which is faster, convenient, and more productive.
- Compact, flat design for use where other cylinders will not fit
- Handles for easy carrying
- Mounting holes permit easy fixturing
- Baked enamel finish for increased corrosion resistance
- CR400 coupler and dust cap included
- Hard chrome plated high-quality steel plungers
- Grooved plunger ends require no saddle
- Single-acting spring return
- RSM750, RSM1000 and RSM1500 have handles for easy carrying
Deskripsi Produk
Silinder Hidraulik Profil Rendah Seri RSM memberikan ketahanan, keamanan, dan kualitas yang unggul dalam format yang ringkas dan praktis. Silinder ini merupakan pilihan yang sempurna untuk aplikasi produksi dan pengangkatan umum yang ruangnya terbatas.
Tinggi yang rendah, langkah pendek, dan sisi datar memungkinkan keamanan dan stabilitas baik dalam orientasi vertikal maupun horizontal.
Silinder Seri RSM merupakan pilihan yang populer. Tidak hanya untuk pengangkatan umum, tetapi juga untuk aplikasi produksi. Dua lubang pemasangan tembus di setiap silinder memudahkan untuk dijepit ke mesin dan perlengkapan lainnya.
Banyak silinder hidraulik profil rendah mengandalkan berat beban untuk menarik pendorong. Silinder RSM berbeda dan mencakup pegas pengembali yang kuat, yang lebih cepat, nyaman, dan lebih produktif.
Fitur
- Desain yang ringkas dan datar untuk penggunaan di tempat yang tidak muat untuk tabung lain
- Pegangan untuk memudahkan dibawa
- Lubang pemasangan memungkinkan pemasangan yang mudah
- Lapisan enamel panggang untuk meningkatkan ketahanan terhadap korosi
- Kopler CR400 dan tutup debu disertakan
- Plunger baja berkualitas tinggi berlapis krom keras
- Ujung plunger beralur tidak memerlukan pelana
- Pegas pengembali kerja tunggal
- RSM750, RSM1000 dan RSM1500 memiliki pegangan untuk memudahkan dibawa
