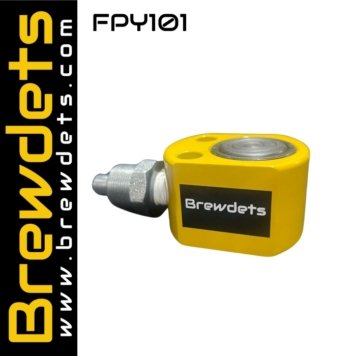

Hydraulic Cylinder 10 Ton Low Height FPY101
Rp 612.000| Kode | FPY101 |
| Stok | Tersedia (100) |
| Kategori | Low Height Cylinders |
EXCLUDE PPN 11%
Model no. Tons(T) :10
EffectiveArea(cm²): 15.89
Oil Capacity(cm³):17
Inner Dia(mm): φ45mm
OuterDia(mm): φ83mm
Travel(mm): 11mm
Weight(kg): 1.6
Collapsed Height:47mm
Piston Dia(mm): φ35mm
Pump:CP-180
Nomor Model: Ton (T): 10
Luas Efektif (cm²): 15,89
Kapasitas Oli (cm³): 17
Diameter Dalam (mm): φ45mm
Diameter Luar (mm): φ83mm
Jarak Tempuh (mm): 11mm
Berat (kg): 1,6
Tinggi Terlipat: 47mm
Diameter Piston (mm): φ35mm
Pompa: CP-180
Hydraulic Cylinder 10 Ton Low Height FPY101
Product Description
Grooved plunger top saves load from l sliding.
Mounting holes permit easy fixuring. Single acting spring return type.
Chrome plating on the plunger avoids eroding and results in less friction.
High strength alloy steel for durability.
Baked enamel finish for increased corrosion resistance.
High flow ZG 3/8” male coupler & dust cap included in all cylinders. Compact, Flat design for use in confined areas where other cylinders will not fit.
Customized cylinders can be made against order
Produk Deskripsi
Bagian atas plunger beralur mencegah beban bergeser.
Lubang pemasangan memudahkan pemasangan. Tipe pegas balik kerja tunggal.
Pelapisan krom pada plunger mencegah erosi dan mengurangi gesekan.
Baja paduan berkekuatan tinggi untuk daya tahan.
Lapisan enamel panggang untuk meningkatkan ketahanan korosi.
Kopler male ZG 3/8” aliran tinggi & tutup debu disertakan di semua silinder. Desain ringkas dan datar untuk digunakan di area terbatas yang tidak muat untuk silinder lain.
Silinder khusus dapat dibuat sesuai pesanan.
