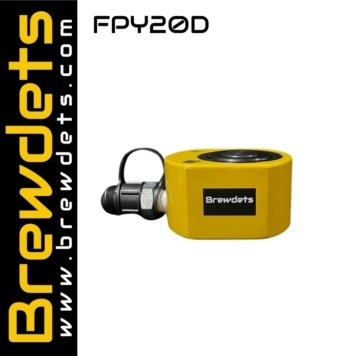

Hydraulic Cylinder 20 Ton Low Height FPY20D
Rp 1.190.000| Kode | FPY20D |
| Stok | Tersedia (100) |
| Kategori | Low Height Cylinders |
EXCLUDE PPN 11%
Model no. : FPY-20D
Tons(T) : 20
Effective Area(cm²) : 37.9 51
Inner Dia(mm) : 51
Oil Capacity(cm³): 60mm 98mm
OuterDia(mm):98mm 28mm (1stage:12mm 2stage:16mm)
Travel(mm):28mm (1stage:12mm 2stage:16mm)
Weight(kg):2.8
Collapsed Height: 55mm
Nomor Model: FPY-20D
Ton (T): 20
Luas Efektif (cm²): 37,9 51
Diameter Dalam (mm): 51
Kapasitas Oli (cm³): 60 mm 98 mm
Diameter Luar (mm): 98 mm 28 mm (1 tahap: 12 mm 2 tahap: 16 mm)
Jarak (mm): 28 mm (1 tahap: 12 mm 2 tahap: 16 mm)
Berat (kg): 2,8
Tinggi Terlipat: 55 mm
Hydraulic Cylinder 20 Ton Low Height FPY20D
Single acting, spring return type.
Telescopic stroke, less height – more stroke.
Chrome plating on the plunger avoids eroding and results in less friction.
Baked enamel finish for increased corrosion resistance.
High flow ZG 3/8” male coupler & dust cap included in all cylinders.
High strength alloy steel for durability.
Compact, Flat design for use in confined areas where other Cylinders will not fit.
Customized cylinders can be made against order.
Deskripsi Produk
Tipe pegas balik aksi tunggal.
Langkah teleskopik, tinggi lebih rendah – langkah lebih panjang.
Pelapisan krom pada plunger mencegah erosi dan menghasilkan gesekan yang lebih sedikit.
Lapisan enamel panggang untuk meningkatkan ketahanan korosi.
Kopler jantan ZG 3/8” aliran tinggi & tutup debu disertakan di semua silinder.
Baja paduan berkekuatan tinggi untuk daya tahan.
Desain ringkas dan datar untuk digunakan di area terbatas yang tidak muat untuk silinder lain.
Silinder khusus dapat dibuat berdasarkan pesanan.
Hydraulic Cylinder 20 Ton Low Height FPY20D
