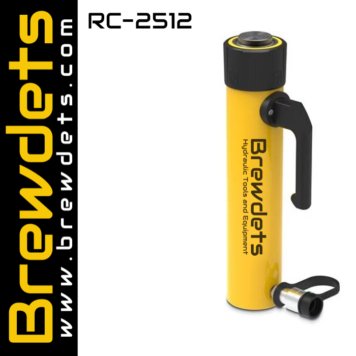

Hydraulic Cylinder 25 Ton Single Acting RC2512
| Kode | RC2512 |
| Stok | Tersedia (100) |
| Kategori | Single Acting Cylinders |
Maximum Operating Pressure (bar) : 700
Capacity Class (tonnage) : 25
Maximum Cylinder Capacity Advance (kN) : 232
Stroke (mm) : 311
Collapsed Height A (mm) : 425
Extended Height B (mm) : 736
Return Type : Single-Acting, Spring Return
Plunger Type : Solid
Material : Steel
Cylinder Effective Area Advance (cm2) : 33,3
Oil Capacity Advance (cm3) : 1033
Surface Treatment : Paint
Coupler : CR400 Coupler
Weight (kg) : 16,3
Tekanan Operasional Maksimum (bar): 700
Kelas Kapasitas (tonase): 25
Kapasitas Silinder Maksimum Maju (kN): 232
Langkah (mm): 311
Tinggi Terlipat A (mm): 425
Tinggi Diperpanjang B (mm): 736
Tipe Pengembalian: Aksi Tunggal, Pengembalian Pegas
Tipe Plunger: Padat
Material: Baja
Luas Efektif Silinder Maju (cm2): 33,3
Kapasitas Oli Maju (cm3): 1033
Perawatan Permukaan: Cat
Kopler: Kopler CR400
Berat (kg): 16,3
Hydraulic Cylinder 25 Ton Single Acting RC2512
RC-TRIO is the next generation of the legendary RC-Series single acting hydraulic cylinders. These hydraulic jacks include many advanced features to ensure superior durability, versatility, and productivity.
A pre-tensioned spring provides fast plunger retraction and enhanced productivity. The robust bearing system features composite wear bands and a hardened stop ring to resist side-load which minimizes damage and repairs. The plunger wiper, high-grade polyethylene seals and tough external finishes also help towards an extended service life.
With so many hydraulic cylinder models to choose from, we’re confident you’ll find the perfect match for your applications, and if you already own prior RC-Series cylinders, the good news is the new cylinders share the same familiar dimensions and threads for full compatibility.
- Bearing system with composite wear bands for optimal sideload resistance
- Strengthened stop ring improves durability and side load resistance
- Trio Hybrid pre-tensioned spring system provides faster retraction
- High-grade polyethylene seals for low wear and long service life
- Plunger wiper reduces contamination, extending cylinder life.
- Collar and plunger threads and base mounting holes enable easy fixturing (on most models)
- Standard certified lifting eyes on cylinder models above 55 lbs. (25 kg) weight.
- Interchangeable with optional CHM6 carrying handle
- Designed for use in all positions
- Baked enamel finish for increased corrosion resistance
- Includes CR400 coupler, dust cap and collar thread protector
- RC-Series model numbers, external dimensions and threads remain unchanged from prior RC Series cylinders
Deskripsi Produk
RC-TRIO adalah generasi terbaru dari silinder hidrolik kerja tunggal RC-Series yang legendaris. Dongkrak hidrolik ini dilengkapi banyak fitur canggih untuk memastikan daya tahan, fleksibilitas, dan produktivitas yang unggul.
Pegas pra-tegang memungkinkan retraksi plunger yang cepat dan peningkatan produktivitas. Sistem bantalan yang kokoh dilengkapi pita aus komposit dan cincin penghenti yang diperkeras untuk menahan beban samping yang meminimalkan kerusakan dan perbaikan. Wiper plunger, segel polietilen berkualitas tinggi, dan lapisan luar yang kuat juga membantu memperpanjang masa pakai.
Dengan begitu banyak model silinder hidrolik yang dapat dipilih, kami yakin Anda akan menemukan yang paling sesuai untuk aplikasi Anda, dan jika Anda sudah memiliki silinder RC-Series sebelumnya, kabar baiknya adalah silinder baru ini memiliki dimensi dan ulir yang sama untuk kompatibilitas penuh.
Fitur
- Sistem bantalan dengan pita aus komposit untuk ketahanan beban samping yang optimal
- Cincin penghenti yang diperkuat meningkatkan daya tahan dan ketahanan beban samping
- Sistem pegas pra-tegang Trio Hybrid menghasilkan retraksi yang lebih cepat
- Seal polietilen bermutu tinggi untuk keausan rendah dan masa pakai yang lama
- Wiper plunger mengurangi kontaminasi, memperpanjang umur silinder.
- Ulir kerah dan plunger serta lubang pemasangan dasar memungkinkan pemasangan yang mudah (pada sebagian besar model)
- Mata pengangkat bersertifikasi standar pada model silinder dengan berat di atas 55 lbs (25 kg).
- Dapat diganti dengan pegangan pembawa CHM6 opsional
- Dirancang untuk digunakan di semua posisi
- Lapisan enamel panggang untuk meningkatkan ketahanan korosi
- Termasuk coupler CR400, tutup debu, dan pelindung ulir kerah
- Nomor model, dimensi eksternal, dan ulir Seri RC tetap sama dengan silinder Seri RC sebelumnya
