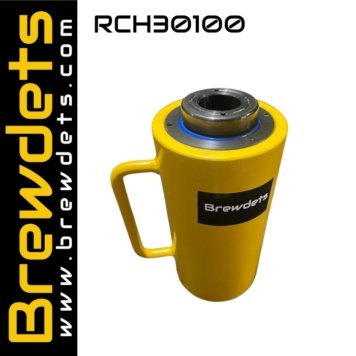

Hydraulic Cylinder 30 Ton Hollow Plunger RCH30100
Rp 3.502.000| Kode | RCH30100 |
| Stok | Tersedia (100) |
| Kategori | Single Hollow Jack Cylinder |
EXCLUDE PPN 11%
Model no. : RCH-30100
Tons(T) : 30
Effective Area(cm ²): 47.7
Oil Capacity (cm³): 477
Travel(mm): 100mm
Inner Dia(mm): 90mm
Outer Dia(mm):113mm
Collapsed Height(mm): 222mm
Centre Bore(mm):34mm
Weight(kg): 15.6
Pump: CP-700A
Nomor Model: RCH-30100
Ton (T): 30
Luas Efektif (cm²): 47,7
Kapasitas Oli (cm³): 477
Jarak (mm): 100 mm
Diameter Dalam (mm): 90 mm
Diameter Luar (mm): 113 mm
Tinggi Terlipat (mm): 222 mm
Lubang Tengah (mm): 34 mm
Berat (kg): 15,6
Pompa: CP-700A
Hydraulic Cylinder 30 Ton Hollow Plunger RCH30100
Product Description
1. Hollow plunger design allows for both Pull & push forces.
2.Single acting spring return.
3.Baked enamel finish for increased corrosion resistance.
4.High flow ZG 3/8”male coupler & dust cap included in all cylinders.
5.High strength alloy steel for durability.
Customized cylinders can be made against order.
Deskripsi Produk
1. Desain plunger berongga memungkinkan gaya tarik & dorong.
2. Pegas balik aksi tunggal.
3. Lapisan enamel panggang untuk meningkatkan ketahanan korosi.
4. Kopling male ZG 3/8” aliran tinggi & tutup debu disertakan di semua silinder.
5. Baja paduan berkekuatan tinggi untuk daya tahan.
Silinder khusus dapat dibuat berdasarkan pesanan.
