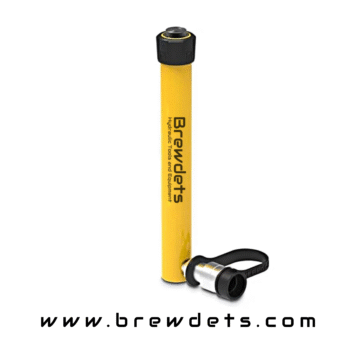

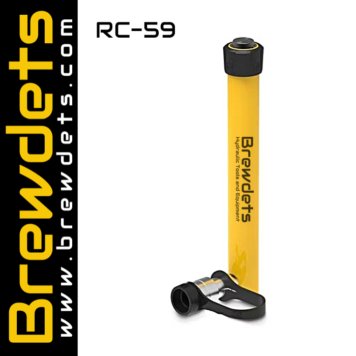

Hydraulic Cylinder 5 Ton Single Acting RC59
Rp 4.454.000| Kode | RC59 |
| Stok | Tersedia (100) |
| Kategori | Single Acting Cylinders |
Weight (kg) 2,8
Tekanan Operasional Maksimum (bar) 700
Kelas Kapasitas (tonase) 5
Kapasitas Silinder Maksimum Maju (kN) 45
Langkah (mm) 232
Tinggi Terlipat A (mm) 324
Tinggi Terentang B (mm) 556
Tipe Pengembalian Aksi Tunggal, Pengembalian Pegas
Tipe Plunger Padat
Material Baja
Luas Efektif Silinder Maju (cm2) 6,4
Kapasitas Oli Maju (cm3) 151
Cat Pelapis Permukaan
Kopler Kopler CR400
Berat (kg) 2,8
Hydraulic Cylinder 5 Ton Single Acting RC59
RC-TRIO is the next generation of the legendary Enerpac RC-Series single acting hydraulic cylinders. These hydraulic jacks include many advanced features to ensure superior durability, versatility, and productivity.
A pre-tensioned spring provides fast plunger retraction and enhanced productivity. The robust bearing system features composite wear bands and a hardened stop ring to resist side-load which minimizes damage and repairs. The plunger wiper, high-grade polyethylene seals and tough external finishes also help towards an extended service life.
With so many hydraulic cylinder models to choose from, we’re confident you’ll find the perfect match for your applications, and if you already own prior RC-Series cylinders, the good news is the new cylinders share the same familiar dimensions and threads for full compatibility.
- Bearing system with composite wear bands for optimal sideload resistance
- Strengthened stop ring improves durability and side load resistance
- Trio Hybrid pre-tensioned spring system provides faster retraction
- High-grade polyethylene seals for low wear and long service life
- Plunger wiper reduces contamination, extending cylinder life.
- Collar and plunger threads and base mounting holes enable easy fixturing (on most models)
- Standard certified lifting eyes on cylinder models above 55 lbs. (25 kg) weight.
- Interchangeable with optional CHM6 carrying handle
- Designed for use in all positions
- Baked enamel finish for increased corrosion resistance
- Includes CR400 coupler, dust cap and collar thread protector
- RC-Series model numbers, external dimensions and threads remain unchanged from prior RC Series cylindersDeskripsi ProdukProduct Description
RC-TRIO adalah generasi berikutnya dari silinder hidrolik kerja tunggal Enerpac RC-Series yang legendaris. Dongkrak hidrolik ini mencakup banyak fitur canggih untuk memastikan ketahanan, fleksibilitas, dan produktivitas yang unggul.Pegas yang dikencangkan sebelumnya menyediakan retraksi pendorong yang cepat dan peningkatan produktivitas. Sistem bantalan yang kuat dilengkapi pita keausan komposit dan cincin penghenti yang diperkeras untuk menahan beban samping yang meminimalkan kerusakan dan perbaikan. Wiper pendorong, segel polietilena bermutu tinggi, dan lapisan luar yang kuat juga membantu memperpanjang masa pakai.Dengan begitu banyak model silinder hidrolik yang dapat dipilih, kami yakin Anda akan menemukan yang paling cocok untuk aplikasi Anda, dan jika Anda sudah memiliki silinder RC-Series sebelumnya, kabar baiknya adalah silinder baru tersebut memiliki dimensi dan ulir yang sama untuk kompatibilitas penuh.
Fitur
Sistem bantalan dengan pita keausan komposit untuk ketahanan beban samping yang optimal
Cincin penghenti yang diperkuat meningkatkan daya tahan dan ketahanan beban samping
Sistem pegas pra-tegang Trio Hybrid memberikan retraksi yang lebih cepat
Segel polietilena bermutu tinggi untuk keausan rendah dan masa pakai yang lama
Wiper pendorong mengurangi kontaminasi, memperpanjang masa pakai silinder.
Ulir kerah dan pendorong serta lubang pemasangan dasar memungkinkan pemasangan yang mudah (pada sebagian besar model)
Mata pengangkat bersertifikasi standar pada model silinder dengan berat di atas 55 lbs. (25 kg).
Dapat dipertukarkan dengan pegangan pembawa CHM6 opsional
Dirancang untuk digunakan di semua posisi
Lapisan enamel panggang untuk meningkatkan ketahanan terhadap korosi
Termasuk coupler CR400, tutup debu, dan pelindung ulir kerah
Nomor model Seri RC, dimensi eksternal, dan ulir tetap tidak berubah dari silinder Seri RC sebelumnya
