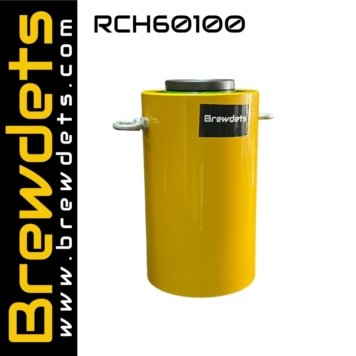

Hydraulic Cylinder 60 Ton Hollow Plunger RCH60100
Rp 7.582.000| Kode | RCH60100 |
| Stok | Tersedia (100) |
| Kategori | Single Hollow Jack Cylinder |
EXCLUDE PPN 11%
Model no. : RCH-60100
Tons(T) : 60
Effective Area(cm ²): 80.3
Oil Capacity (cm³): 803
Travel(mm): 100mm
Inner Dia(mm): 123mm
Outer Dia(mm):158mm
Collapsed Height(mm): 265mm
Centre Bore(mm): 54mm
Weight(kg): 37.3
Pump: CP-700A
Nomor Model: RCH-60100
Ton (T): 60
Luas Efektif (cm²): 80,3
Kapasitas Oli (cm³): 803
Jarak (mm): 100 mm
Diameter Dalam (mm): 123 mm
Diameter Luar (mm): 158 mm
Tinggi Terlipat (mm): 265 mm
Lubang Tengah (mm): 54 mm
Berat (kg): 37,3
Pompa: CP-700A
Hydraulic Cylinder 60 Ton Hollow Plunger RCH60100
Product Description
1. Hollow plunger design allows for both Pull & push forces.
2.Single acting spring return.
3.Baked enamel finish for increased corrosion resistance.
4.High flow ZG 3/8”male coupler & dust cap included in all cylinders.
5.High strength alloy steel for durability.
Customized cylinders can be made against order.
Deskripsi Produk
1. Desain plunger berongga memungkinkan gaya tarik & dorong.
2. Pegas balik aksi tunggal.
3. Lapisan enamel panggang untuk meningkatkan ketahanan korosi.
4. Kopling male ZG 3/8” aliran tinggi & tutup debu disertakan di semua silinder.
5. Baja paduan berkekuatan tinggi untuk daya tahan.
Silinder khusus dapat dibuat berdasarkan pesanan.
