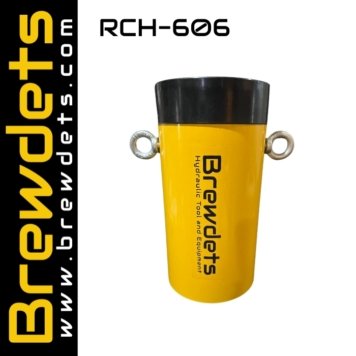

Hydraulic Cylinder 60 Ton Single Hollow RCH-606
Rp 18.598.000 Rp 20.643.780| Kode | RCH-606 |
| Stok | Tersedia (100) |
| Kategori | Single Hollow Jack Cylinder |
Kelas Kapasitas (tonase): 60
Kapasitas Silinder Maksimum Maju (kN): 576
Langkah (mm): 153
Tinggi Terlipat A (mm): 323
Tinggi Terentang B (mm): 476
Diameter Lubang Tengah Y (mm): 53,8
Tipe Pengembalian: Aksi Tunggal, Pengembalian Pegas
Tipe Plunger: Berongga
Material: Baja
Luas Efektif Silinder Maju (cm2): 82,3
Kapasitas Oli Maju (cm3): 1259
Perawatan Permukaan: Cat
Kopler: Kopler CR400
Berat (kg): 35,4
Hydraulic Cylinder 60 Ton Single Hollow RCH-606
RCH-Series Hollow Plunger Cylinders offer versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull or lifting applications.
cylinders are built to withstand tough conditions and demanding applications. These RCH cylinders have a baked enamel finish to resist corrosion. The center hole design has base holes and collar threads for easy fixturing. For models over 20 tons, the RCH series has nickel-plated floating center tube to reduce side load damage and increase the product life.
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- Features CR400 Coupler
Deskripsi Produk
Silinder Plunger Berongga Seri RCH menawarkan fleksibilitas dalam pengujian, perawatan, dan aplikasi pengencangan. Desain plunger berongga memungkinkan aplikasi dorong, tarik, atau angkat.
Silinder ini dirancang untuk tahan terhadap kondisi sulit dan aplikasi yang menuntut. Silinder RCH ini memiliki lapisan enamel panggang untuk menahan korosi. Desain lubang tengah memiliki lubang dasar dan ulir kerah untuk memudahkan pemasangan. Untuk model di atas 20 ton, seri RCH memiliki tabung tengah mengambang berlapis nikel untuk mengurangi kerusakan akibat beban samping dan meningkatkan masa pakai produk.
Fitur
- Desain plunger berongga memungkinkan gaya tarik dan dorong
- Pengembalian pegas kerja tunggal
- Tabung tengah mengambang berlapis nikel pada model di atas 20 ton meningkatkan masa pakai produk
- Lapisan enamel panggang untuk meningkatkan ketahanan korosi
- Ulir kerah untuk memudahkan pemasangan
- Fitur Kopling CR400
