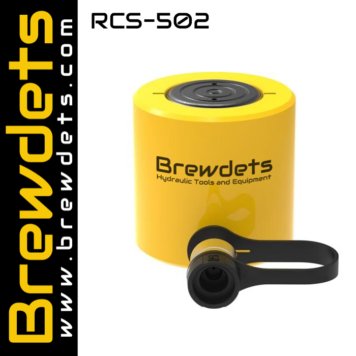

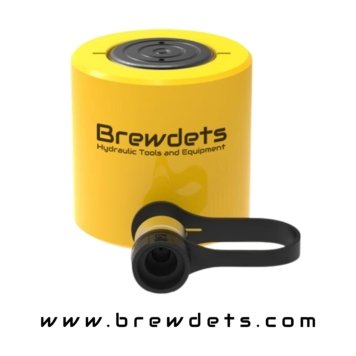

Hydraulic Cylinder 50 Ton Low Height RCS502
Rp 4.454.000| Kode | RCS502 |
| Stok | Tersedia (100) |
| Kategori | Low Height Cylinders |
Kelas Kapasitas (tonase): 50
Kapasitas Silinder Maksimum Maju (kN): 435
Langkah (mm): 60
Tinggi Terlipat A (mm): 122
Tinggi Terentang B (mm): 182
Tipe Pengembalian: Aksi Tunggal, Pengembalian Pegas
Tipe Plunger: Padat
Material: Baja
Luas Efektif Silinder Maju (cm2): 62,1
Kapasitas Oli Maju (cm3): 373
Perawatan Permukaan: Cat
Kopler: Kopler CR400
Berat (kg): 10,0
Hydraulic Cylinder 50 Ton Low Height RCS502
RCS-Series Low Profile Hydraulic Cylinders provide superior durability, performance longevity, safety, and quality in a compact and convenient footprint. These low profile hydraulic jacks are the perfect choice for general lifting and production applications where space is limited or constrained. A low collapsed height, short stroke, and solid construction enables safety and stability in both vertical and horizontal orientations.
Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RCS cylinders are different and include a powerful return spring, which is faster, convenient, and more productive. The entire RCS cylinder range is rated for high-pressure; 10,000 psi (700 bar).
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
Deskripsi Produk
Silinder Hidraulik Profil Rendah Seri RCS memberikan daya tahan, kinerja, keamanan, dan kualitas yang unggul dalam bentuk yang ringkas dan praktis. Dongkrak hidraulik profil rendah ini adalah pilihan yang tepat untuk aplikasi pengangkatan dan produksi umum yang ruangnya terbatas atau terbatas. Tinggi yang rendah, langkah pendek, dan konstruksi yang kokoh memungkinkan keamanan dan stabilitas baik dalam orientasi vertikal maupun horizontal.
Banyak silinder hidraulik profil rendah mengandalkan berat beban untuk menarik pendorong. Silinder RCS berbeda dan mencakup pegas balik yang kuat, yang lebih cepat, nyaman, dan lebih produktif. Seluruh rangkaian silinder RCS dinilai untuk tekanan tinggi; 10.000 psi (700 bar).
Fitur
- Desain ringan dan berprofil rendah untuk penggunaan di ruang terbatas
- Lapisan enamel panggang untuk meningkatkan ketahanan terhadap korosi
- Wiper pendorong mengurangi kontaminasi, memperpanjang masa pakai silinder
- Kopler CR-400 dan tutup debu disertakan pada semua model
- Ujung pendorong beralur dengan lubang berulir untuk memasang sadel miring
- Plunger baja berlapis
- Pegas pengembali kerja tunggal
