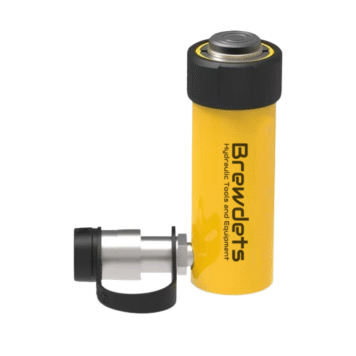

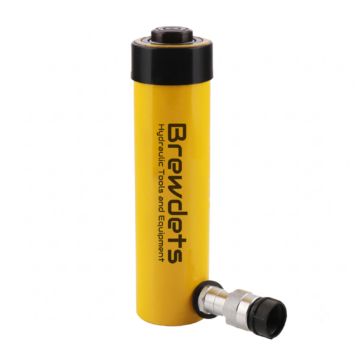

Brewdets Hydraulic Cylinder 10 Ton Single Acting RC-104
Rp 5.457.000| Kode | RC-104 |
| Stok | Tersedia (100) |
| Kategori | Hydraulic Cylinder Jack, Hydraulic Jack, Single Acting |
Price Exclude PPN 11%
- Maximum Operating Pressure (psi) : 10,000
- Capacity Class (tonnage) : 10
- Maximum Cylinder Capacity Advance (short tons) : 11.2
- Stroke (in) : 4.13

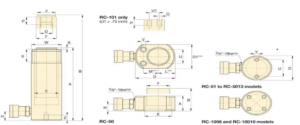

- Collapsed Height A (in) : 6.75
- Extended Height B (in) : 10.88
- Return Type : Single-Acting, Spring Return
- Plunger Type : Solid
- Material : Steel
- Cylinder Effective Area Advance (in2) : 2.24
- Oil Capacity Advance (in3) : 9.23
- Surface : Treatment Paint
- Coupler : CR400 Coupler
- Weight (lbs) : 7.2
Brewdets Hydraulic Cylinder 10 Ton Single Acting RC-104
Brewdets Hydraulic Cylinder 10 Ton Single Acting RC-104
Product Description
RC-TRIO is the next generation of the legendary RC-Series single acting hydraulic cylinders. These hydraulic jacks include many advanced features to ensure superior durability, versatility, and productivity.
A pre-tensioned spring provides fast plunger retraction and enhanced productivity. The robust bearing system features composite wear bands and a hardened stop ring to resist side-load which minimizes damage and repairs. The plunger wiper, high-grade polyethylene seals and tough external finishes also help towards an extended service life.
With so many hydraulic cylinder models to choose from, we’re confident you’ll find the perfect match for your applications, and if you already own prior RC-Series cylinders, the good news is the new cylinders share the same familiar dimensions and threads for full compatibility.
Features
- Bearing system with composite wear bands for optimal sideload resistance
- Strengthened stop ring improves durability and side load resistance
- Trio Hybrid pre-tensioned spring system provides faster retraction
- High-grade polyethylene seals for low wear and long service life
