- Brewdets Store is your trusted destination for industrial hydraulic tools, equipment, and accessories. We deliver premium-quality hydraulic solutions at competitive prices, backed by a 2-year warranty and our commitment to 24-hour technical support and after-sales service.
click image to preview
activate zoom
| Code Product | RR10500 |
| Stock | Available (100) |
| Category | Double Acting, Hydraulic Jack |
Price Exclude PPN 11%
- Model no. : RR-10500
- Tons(T) : 10
- Effective Area(cm²): 15.9
- Oil Capacity (cm³): 795
- Travel(mm): 500mm
- Inner Dia(mm): 45mm
- Outer Dia(mm):65mm
- Collapsed Height(mm): 590mm
- Weight(kg): 8.5
- Pump: CP-800S

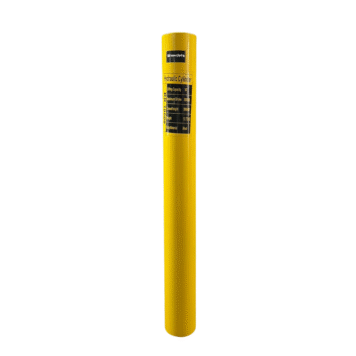

Brewdets Hydraulic Cylinder 10 Ton Double Acting RR10500
Brewdets Hydraulic Cylinder Jack
The 10-Ton Double Acting Hydraulic Cylinder RR10500 is a lightweight and compact long-stroke hydraulic cylinder—ideal for applications such as industrial lifting, maintenance, or construction. With its double-acting design, anti-corrosion finish, safety features, and ease of installation, this unit helps ensure strong, safe, and durable performance in demanding work environments.
Key Features & Construction
- Double-Acting Design: Enables push and pull operation with the assistance of hydraulic fluid circulation to both sides of the piston (return and forward).
- Corrosion-Resistant Finish: Baked enamel coated surface for resistance to corrosion and aggressive field conditions.
- Common Additional Terms Similar to the RR Series:
- Collar threads, plunger threads, and base mounting holes for easy installation or fixture.
- Removable hardened saddles protect the plunger surface when used for lifting or pressing loads.
- Built-in safety valve prevents dangerous over-pressurization.
- Plunger wiper reduces fluid contamination and extends cylinder life.
