- Brewdets Store is your trusted destination for industrial hydraulic tools, equipment, and accessories. We deliver premium-quality hydraulic solutions at competitive prices, backed by a 2-year warranty and our commitment to 24-hour technical support and after-sales service.
click image to preview
activate zoom
| Code Product | DY-RC-55FB |
| Stock | Available (100) |
| Category | Hydraulic Cylinder Jack, Hydraulic Jack, Single Acting |
Price Exclude PPN 11%
- Model no: DY-RC-55FB
- Capacity(t): 5
- Stroke: 128
- Oil capacity(cm3): 94
- Cylinder bore diameter(mm): 30
- Effective area(cm2): 7.1
- Load at 700bar(ton): 4.97
- Collapsed Height(mm): 217
- Extendec Height (mm): 344
- Outside Diameter (mm): 39
- Collar Thread (inch): 1 1/2-16
- Collar Thread Length(mm): 28 5
- Base to Adv Port(mm): 19
- Plunger Diameter(mm): 26
- Saddle Height (mm): 6
- Plunger Internal Thread Size and Depth (NPT)meh: W-16‘16
- of fixing holes: 2
- Thread Size: 1/4"-20
- Thread Depth (mm): 9.5
- Bolt Circle Diameter (mm): 254

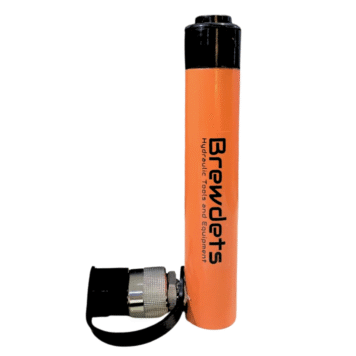

Brewdets Hydraulic Cylinder Single Acting 5 Ton DY-RC-55FB
Brewdets Hydraulic Cylinder Single Acting
Features: The DY-RC series single-acting hydraulic cylinder is compactly designed, with high pressure resistance and strong load-bearing capacity. It is lightweight and easy to carry, suitable for a wide range of applications.
Application: The DY-RC series hydraulic jacks are universal purpose single-act¬
ing hydraulic cylinders with various stroke lengths and lifting capacities. They can be used for compression and lifting in various fields. They are commonly used in mechanical maintenance, ship repair, construction, production manufacturing, and machinery supporting industries.
