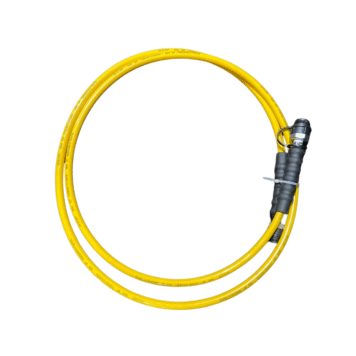

Brewdets Hydraulic Hose 700 Bar Length 3m HX-6-2SP-3
Rp 1.743.588| Kode | HX-6-2SP-3 |
| Stok | Tersedia (100) |
| Kategori | Hose, Hydraulic Accessories |
Price Exclude PPN 11%
- Model : High Pressure Oil Hose
- Length : 3m
- Interface : 3/8"-18NPT thread
- Bearing Pressure : 70MPa
Brewdets Hydraulic Hose 700 Bar Length 3m HX-6-2SP-3
Brewdets Hydraulic Hose 700 Bar Length 3m HX-6-2SP-3
700 bar hydraulic hose is a high-pressure hose designed for hydraulic systems that operate at up to 700 bar (10,000 psi). These are typically used in demanding industrial or mobile equipment applications, including high-pressure hydraulic tools, jacks, cylinders, and pumps.
Key Features of 700 Bar Hydraulic Hoses:
Working Pressure: Up to 700 bar (10,000 psi)
Reinforcement: Often steel wire braid or multi-layer wire to handle high pressure
Inner Tube Material: Synthetic rubber or thermoplastic for hydraulic fluid compatibility
Outer Cover: Abrasion, oil, and weather-resistant rubber or polyurethane
Temperature Range: Typically from -40°C to +100°C (varies by manufacturer)
End Fittings: Can come with quick-connect couplings or threaded ends (e.g., NPT, BSP)
Common Applications:
Hydraulic rescue tools (like the “Jaws of Life”)
High-pressure jacking systems
Offshore and industrial maintenance
Specifications to Consider:
Inner Diameter (ID): 1/8″, 1/4″, 3/8″, etc.
Hose Length: Available from 0.5 m to 30 m or more
Burst Pressure: Usually 2x to 4x working pressure (e.g., 1400–2800 bar)
Fluid Compatibility: Mineral oil, synthetic hydraulic fluids, etc
