Brewdets Pressure Gauge KN-100-70 4″ drat 1/2 NPT 700 BAR/10.000 Psi
Rp 1.190.000| Kode | KN-100-70 |
| Stok | Tersedia (100) |
| Kategori | Hydraulic Accessories, Pressure Gauge |
Price Exclude PPN 11%
- Model : KN-100-70
- Working Pressure Range(MPa) : 0-70
- Measuring Range(MPa) : 0-100
- Dial Diameter(mm) : 100
- Interface Thread : G1/2
Brewdets Pressure Gauge KN-100-70 4″ drat 1/2 NPT 700 BAR/10.000 Psi

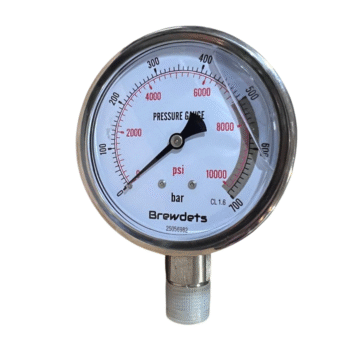

Brewdets Pressure Gauge KN-100-70
This Pressure Gauge is designed for high pressure measurements up to 700 BAR (10,000 PSI). With a 4-inch (100 mm) dial and a standard 1/2″ NPT male connection, this tool is suitable for industrial applications such as hydraulic systems, pressure testing, and high-pressure power units.
Technical Specifications:
- Dial Size: 4 inches (100 mm)
- Pressure Range: 0 – 700 BAR / 0 – 10,000 PSI
- Connection: 1/2″ NPT (Male)
- Scale: Dual Scale (BAR & PSI)
- Housing Material: Stainless Steel / Corrosion-Resistant Metal
- Bourdon Tube Material: Alloy Steel or Stainless Steel (depending on model)
- Filling Type: Dry / Glycerin-filled (optional)
- Accuracy: ±1.6% or ±1.0% of Full Scale (depending on model)
- Connection Position: Bottom Connection
- Movement Type: Gear-driven (high precision)
Features:
- Resistant to high pressure and vibration
- Large, easy-to-read display
- Rugged design for tough work environments
- Dual scales facilitate unit conversion
Brewdets Pressure Gauge KN-100-70 4″ drat 1/2 NPT 700 BAR/10.000 Psi
