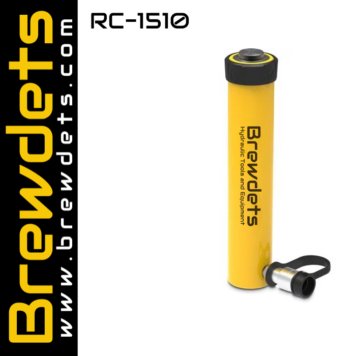

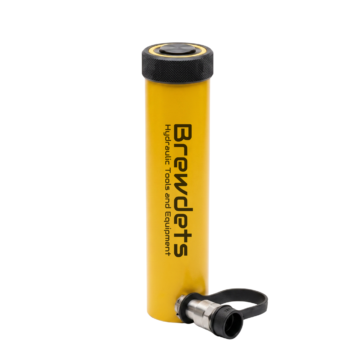

Brewdets Hydraulic Cylinder 15 Ton Single Acting RC1510
| Kode | RC1510 |
| Stok | Tersedia (100) |
| Kategori | Hydraulic Jack |
Kelas Kapasitas (tonase): 15
Kapasitas Silinder Maksimum Maju (kN): 142
Langkah (mm): 254
Tinggi Terlipat A (mm): 373
Tinggi Diperpanjang B (mm): 627
Tipe Pengembalian: Kerja Tunggal,
Plunger Pengembalian Pegas
Tipe Padat: Material Baja
Luas Silinder Efektif Maju (cm2): 20,3
Kapasitas Oli Maju (cm3): 516
Permukaan Perlakuan: Cat
Kopler: Kopler CR400
Berat (kg): 9,5
Brewdets Hydraulic Cylinder 15 Ton Single Acting RC1510
RC-TRIO is the next generation of the legendary RC-Series single acting hydraulic cylinders. These hydraulic jacks include many advanced features to ensure superior durability, versatility, and productivity.
A pre-tensioned spring provides fast plunger retraction and enhanced productivity. The robust bearing system features composite wear bands and a hardened stop ring to resist side-load which minimizes damage and repairs. The plunger wiper, high-grade polyethylene seals and tough external finishes also help towards an extended service life.
With so many hydraulic cylinder models to choose from, we’re confident you’ll find the perfect match for your applications, and if you already own prior RC-Series cylinders, the good news is the new cylinders share the same familiar dimensions and threads for full compatibility.
- Bearing system with composite wear bands for optimal sideload resistance
- Strengthened stop ring improves durability and side load resistance
- Trio Hybrid pre-tensioned spring system provides faster retraction
- High-grade polyethylene seals for low wear and long service life
- Plunger wiper reduces contamination, extending cylinder life.
- Collar and plunger threads and base mounting holes enable easy fixturing (on most models)
- Standard certified lifting eyes on cylinder models above 55 lbs. (25 kg) weight.
- Interchangeable with optional CHM6 carrying handle
- Designed for use in all positions
- Baked enamel finish for increased corrosion resistance
- Includes CR400 coupler, dust cap and collar thread protector
- RC-Series model numbers, external dimensions and threads remain unchanged from prior RC Series cylinders.
Deskripsi Produk
RC-TRIO adalah generasi berikutnya dari silinder hidrolik kerja tunggal RC-Series yang legendaris. Dongkrak hidrolik ini mencakup banyak fitur canggih untuk memastikan ketahanan, fleksibilitas, dan produktivitas yang unggul.
Pegas yang dikencangkan sebelumnya menyediakan retraksi pendorong yang cepat dan peningkatan produktivitas. Sistem bantalan yang kuat dilengkapi pita keausan komposit dan cincin penghenti yang diperkeras untuk menahan beban samping yang meminimalkan kerusakan dan perbaikan. Wiper pendorong, segel polietilena bermutu tinggi, dan lapisan luar yang kuat juga membantu memperpanjang masa pakai.
Dengan begitu banyak model silinder hidrolik yang dapat dipilih, kami yakin Anda akan menemukan yang paling cocok untuk aplikasi Anda, dan jika Anda sudah memiliki silinder RC-Series sebelumnya, kabar baiknya adalah silinder baru tersebut memiliki dimensi dan ulir yang sama untuk kompatibilitas penuh.
Fitur
- Sistem bantalan dengan pita keausan komposit untuk ketahanan beban samping yang optimal
- Cincin penghenti yang diperkuat meningkatkan daya tahan dan ketahanan beban samping
- Sistem pegas pra-tegang Trio Hybrid memberikan retraksi yang lebih cepat
- Segel polietilena bermutu tinggi untuk keausan rendah dan masa pakai yang lama
- Wiper pendorong mengurangi kontaminasi, memperpanjang masa pakai silinder.
- Ulir kerah dan pendorong serta lubang pemasangan dasar memungkinkan pemasangan yang mudah (pada sebagian besar model)
- Mata pengangkat bersertifikasi standar pada model silinder dengan berat di atas 55 lbs. (25 kg).
- Dapat dipertukarkan dengan pegangan pembawa CHM6 opsional
- Dirancang untuk digunakan di semua posisi
- Lapisan enamel panggang untuk meningkatkan ketahanan terhadap korosi
- Termasuk coupler CR400, tutup debu, dan pelindung ulir kerah
- Nomor model Seri RC, dimensi eksternal, dan ulir tetap tidak berubah dari silinder Seri RC sebelumnya
