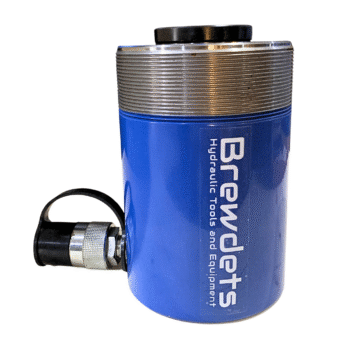

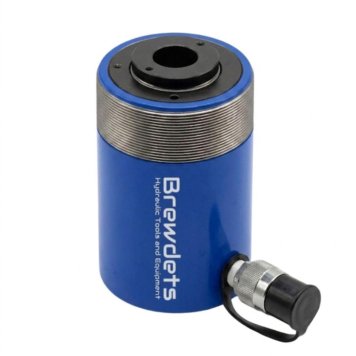

Brewdets Hydraulic Cylinder Hollow Plunger 30 Ton DY-RCH-302
Rp 7.140.000| Kode | DY-RCH-302 |
| Stok | Tersedia (100) |
| Kategori | Hollow, Hydraulic Cylinder Jack, Hydraulic Jack |
Price Exclude PPN 11%
- Model : DY-RCH-302
- Capacity(T):30
- Effective Stroke(mm):64
- Effective Area:46.6
- Oil Capacity(cm):298
- Collapse Height(mm):178
- Extended Height(mm):242
- Cylinder Outside Diameter(mm):114
- CylinderBore Diameter(mm):90
- Plunger Diameter(mm):63
- Base to Advance Port(mm):21
- Saddle Diameter:63
- Saddle Protrusion from Plunger(mm):9
- Center Hole Diameter(mm):33.3
- Weight(kg):10.9
Brewdets Hydraulic Cylinder Hollow Plunger 30 Ton DY-RCH-302
Brewdets Hydraulic Cylinder Hollow Plunger 30 Ton DY-RCH-302
Brewdets Hydraulic Cylinder Hollow Plunger
Features: The hollow plunger allows the drag rod or cable pass through the entire hydraulic cylinder for lifting or jacking operations.
Application: Suitable for testing, maintenance and application where tension is required.
- Easy installation with collar thread (except for some models), convenient for connection with related
structures. - Equipped with 3/8″-18NPT quick hydraulic connector and thread protector.
- Dust seal prevents dust from entering the cylinder, prolonging its service life.
- Hollow plunger with high hardness, smooth surface, and resistance to wear and corrosion.
Sealing ring: Selected brand sealing ring with wear-resistant and anti-aging function to ensure long-term - operation of the hydraulic cylinder.
The cylinder body surface is treated to be wear-resistant and corrosion-resistant, extending its service life.Kunjungi Laman Berikut untuk Info Sewa Hydraulic
