| Code Product | DY-RCS-502 |
| Stock | Available (100) |
| Category | Hydraulic Cylinder Jack, Hydraulic Jack, Single Acting |
Price Exclude PPN 11%
- Model : DY-RCS-502
- Capacity(tons): 50
- Stroke(mm):60
- Oil Capacity:381
- Effective Area:63.5
- Collapsed Height:122
- Extended Height:182
- Outside Diameter:124
- Cylinder Bore Diameter:90
- Plunger Diameter:70
- Base to Advance Port:23
- Saddle Protrusion from Plunger:2
- Thread:M5
- Thread Depth:8
- Bolt Circle:39
- Weight:10.9

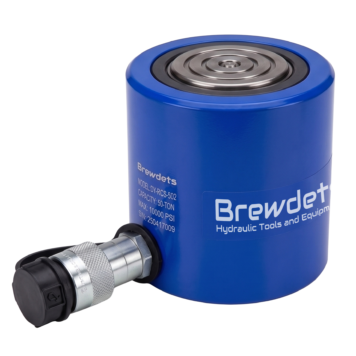

Brewdets Hydraulic Cylinder Low Height 45 Ton DY-RCS-502
Brewdets Hydraulic Cylinder Low Height
DY-RCS-502 The single acting low height hydraulic cylinders are widely used in power plants, shipbuilding and maintenance, construction, railway, mining, steel plants, cement plants, petrochemical and other industries. For example, bridge maintenance, high-speed rail maintenance, installation and adjustment of shipyard main engines and diesel engines, turbine inspection in power plants,cement plant reducers and compactors maintenance, large equipment installation and maintenance, welding adjustment of locomotive body structures, jacking and extrusion tool support.
Product features
High-strength alloy steel spring reset ensures quick retraction of the piston rod,and the high-pressure cylinder is durable.
The top of the plunger groove design, no need to add a hardened plunger saddle when using;
The high-end dust seal design prevents internal contamination of the cylinder body, ensuring a long service life.
