- Brewdets Store is your trusted destination for industrial hydraulic tools, equipment, and accessories. We deliver premium-quality hydraulic solutions at competitive prices, backed by a 2-year warranty and our commitment to 24-hour technical support and after-sales service.
click image to preview
activate zoom
| Code Product | CLL50150 |
| Stock | Available (100) |
| Category | Hydraulic Jack, Lock Nut |
Price Exclude PPN 11%
- Model : CLL-50150
- Pump System : Single Acting 700 Bar / 10000 psi
- Cylinder Capacity : @700 Bar 50 Ton
- Body Height : 215 mm
- Locknut Height : 34 mm
- Travel / Stroke : 150 mm
- Total Height : 399 mm
- Oil Capacity : 1062 ml
- Piston Diameter : 95 mm
- Outside Diameter : 125 mm
- Effective Area : 70.8 cm²
- Saddle : No
- Dust Seal : No
- Handle : Yes
- Connection : Male 3/8" NPT x Male Coupler ZG
- Mounting : No
- Unit Weight : 16.5 kg
- Packing Weight : 24 kg
- Packing Dimension : 300x180x170 mm

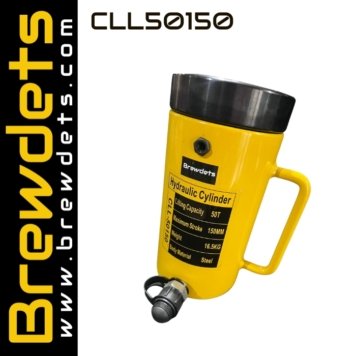

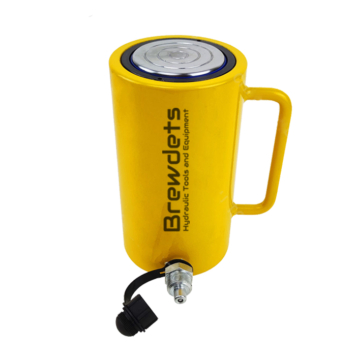

Hydraulic Cylinder 50 Ton Single Acting Lock Nut CLL50150
Hydraulic Cylinder 50 Ton Single Acting Lock Nut | Product Description
- Safety lock nut for Mechanical load holding.
- Single acting, spring return type. Stop ring protects the cylinder when the stroke reaches to maximum, absorbing heaviness from the other side.
- Chrome plating on the plunger avoids corrosion and results in less friction.
- High flow 3/8”NPT female coupler & dust cap included in all cylinders.
- High strength alloy steel for durability.
Deskripsi Produk
- Mur pengunci pengaman untuk menahan beban mekanis.
- Tipe pegas balik aksi tunggal. Cincin penghenti melindungi silinder saat langkah mencapai maksimum, menyerap beban dari sisi lainnya.
- Pelapisan krom pada plunger mencegah korosi dan mengurangi gesekan.
- Kopler betina NPT 3/8” aliran tinggi & tutup debu disertakan di semua silinder.
- Baja paduan berkekuatan tinggi untuk daya tahan.
Tags: CLL5O15O, HYDRAULIC CYLINDER JACK, LOCK NUT
| Dilihat | 309 kali |
| Diskusi | Belum ada komentar |
