| Code Product | P-464 |
| Stock | Available (100) |
| Category | Hand Pump (Manual), Hydraulic Pump |
Price Exclude PPN 11%
- Maximum Operating Pressure (bar) : 700
- Pressure Rating 1st Stage (bar) : 14
- Pressure Rating 2nd Stage (bar): 700
- Cylinder Compatability : Double-acting
- Pump Type : Two Speed
- Reservoir Capacity (cm3) : 7423
- Usable Oil Capacity (cm3) : 7423
- Maximum Flow at Rated Pressure : 4,75 cm3/stroke
- Oil Displacement Per Stroke 1st Stage (cm3) : 126,20
- Oil Displacement Per Stroke 2nd Stage (cm3) : 4,75
- Maximum Handle Effort (kg) : 49
- Piston Stroke (mm) : 38,1
- Valve Operation : Manual
- Power Source : Manual
- Weight (kg) : 27,7

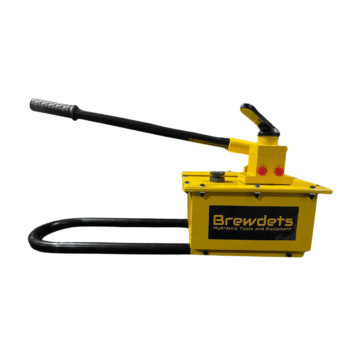

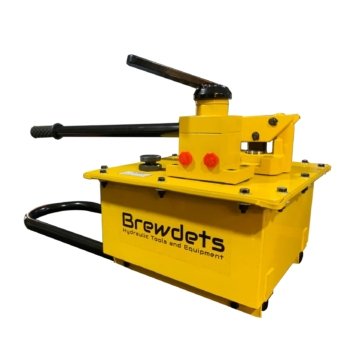

Brewdets Hydraulic Hand Pump Double Acting 700 Bar P-464
All except the P39 are 2 stage pumps, which reduces the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal for applications when high flow is needed at the first stage, (such as when advancing a cylinder to the point of load contact). The pump switches automatically to the second stage which is the low flow high-pressure stage.
With a choice of oil capacities up to 453 in3 (7423 cm3), you will find Ultima Steel Hand Pumps that can handle multiple cylinder hook-ups, including models to suit either single-acting and double-acting cylinders.
- Reduced handle effort and ergonomic grip for less operator fatigue
- Vent free reservoir eliminates spills
- Quick grip handle allows for easy transport
- Integral reservoir over-pressurization protection
