| Code Product | P-392 |
| Stock | Available (100) |
| Category | Hand Pump (Manual), Hydraulic Pump |
Price Exclude PPN 11%
- Maximum Operating Pressure (bar) : 700
- Pressure Rating 1st Stage (bar) : 13
- Pressure Rating 2nd Stage (bar) : 700
- Cylinder Compatability : Single-acting
- Pump Type: Two Speed
- Reservoir Capacity (cm3) : 901
- Usable Oil Capacity (cm3) : 901
- Maximum Flow at Rated Pressure : 2,47 cm3/stroke
- Oil Displacement Per Stroke 1st Stage (cm3) : 11,26
- Oil Displacement Per Stroke 2nd Stage (cm3) : 2,47
- Maximum Handle Effort (kg) : 42,2
- Piston Stroke (mm) : 25,4
- Valve Operation : Manual
- Power Source : Manual
- Weight (kg) : 4,1

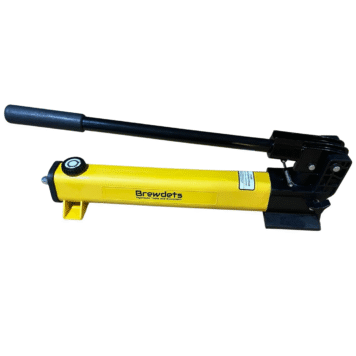

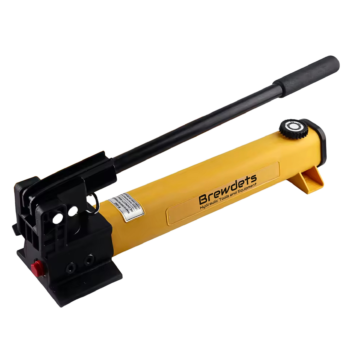

Hydraulic Pump Single Acting 700 Bar
Product Description
Lightweight single-speed hydraulic hand pumps offer the simplicity needed for a wide range of industrial applications. The 2-stage hydraulic models reduce the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal when you want to advance a tool such as a cylinder to the point of load contact. High flow is delivered when it’s needed most before the pump automatically switches to the low flow high-pressure stage.
- Light weight and compact design
- Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
- Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps
- Lower handle effort to minimize operator fatigue
- Handle lock and lightweight construction for easy carrying
- Large oil capacities to power a wide range of cylinders or tools
- Non-conductive fiberglass handle for operator safety
- Internal pressure relief valve for overload protection
