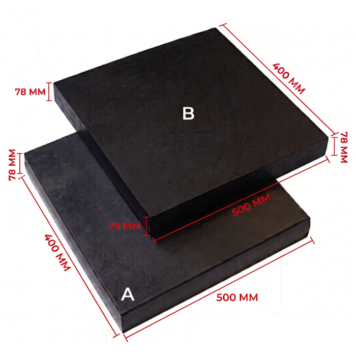

Brewdets Karet Elastomer Jembatan – Bearing Pad 500 MM x 400 MM x 78 MM
Rp 3.861.000| Kode | Elastomer |
| Stok | Tersedia (100) |
| Kategori | Hydraulic Accessories |
General Specifications:
Material: Natural Rubber / Neoprene (CR)
- Size: 500 MM x 400 MM x 78 MM
Type: Plain Elastomeric Pad or Laminated (with steel plates)
Function: Absorbs vibration, allows horizontal movement and slight rotation
Load Capacity: Customized according to bridge design
Standards: Compliant with SNI, AASHTO, or BS standards
Brewdets Karet Elastomer Jembatan – Bearing Pad 500 MM x 400 MM x 78 MM
Brewdets Karet Elastomer Jembatan – Bearing Pad 500 MM x 400 MM x 78 MM
Product Description: Bridge Elastomer Bearing Pad
Karet Elastomer Jembatan | The Bridge Elastomer Bearing Pad, also known as a Bridge Bearing Pad, is an essential structural component designed to transfer loads from the bridge girder to the substructure (abutment or pier) while accommodating movements caused by traffic loads, temperature changes, and vibrations.
Made from high-quality natural or synthetic rubber (typically Neoprene), this bearing pad provides excellent elasticity, durability under high pressure, and resistance to extreme weather and chemicals.
It ensures stable and safe bridge performance, minimizes stress between structural elements, and extends the service life of the bridge.
Applications:
Prestressed concrete bridges
Steel bridges
Flyovers and viaducts
Dynamic building structures
Tags: Karet Elastomer Jembatan
