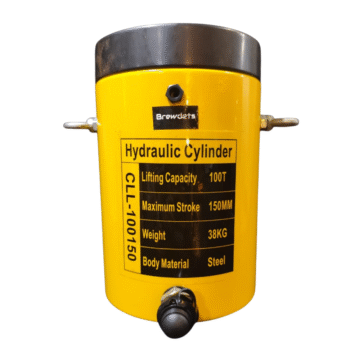

Brewdets Hydraulic Cylinder 100 Ton Single Acting Lock Nut CLL100150
Rp 5.100.000| Kode | CLL100150 |
| Stok | Tersedia (100) |
| Kategori | Hydraulic Jack, Lock Nut, Single Acting |
Price Exclude PPN 11%
- Model Type : CLL-100150
- Ton (T) : 100
- Effective Area (cm²) : 143
- Inner Diameter (mm) : 135
- Oil Capacity (cm³) : 2145
- Outer Diameter (mm) : 178
- Travel(mm) : 150
- Collapsed Height : 232
- Locknut Height(mm) : 35
- Pump : DYB-63A
Brewdets Hydraulic Cylinder 100 Ton Single Acting Lock Nut CLL100150
Brewdets Hydraulic Cylinder 100 Ton Single Acting Lock Nut CLL100150
Hydraulic Cylinder 100 Ton | Brewdets Hydraulic Cylinder Jack
Product Description
- Safety lock nut for Mechanical load holding.
- Single acting, spring return type. Stop ring protects the cylinder when the stroke reaches to maximum, absorbing heaviness from the other side.
- Chrome plating on the plunger avoids corrosion and results in less friction.
- High flow 3/8”NPT female coupler & dust cap included in all cylinders.
- High strength alloy steel for durability
Brewdets Hydraulic Cylinder 100 Ton Single Acting Lock Nut CLL100150
