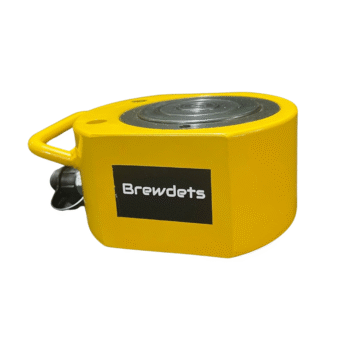

Brewdets Hydraulic Cylinder Low Height 100 Ton FPY100D
Rp 3.400.000| Kode | FPY100D |
| Stok | Tersedia (100) |
| Kategori | Hydraulic Jack, Low Height |
Price Exclude PPN 11%
- Model Number: FPY100D
- Ton (T): 100
- Effective Area (cm²): 203.2
- Inner Diameter (mm): 418
- Oil Capacity (cm³): 135mm
- Outer Diameter (mm): 188mm
- Pitch (mm): 69mm (1-stage: 15mm, 2-stage: 30mm, 3-stage: 24mm)
- Weight (kg): 20.5
- Folded Height: 90mm
Brewdets Hydraulic Cylinder Low Height 100 Ton FPY100D
Brewdets Hydraulic Cylinder Low Height 100 Ton FPY100D
- Single acting, spring return type.
- Telescopic stroke, less height – more stroke.
- Chrome plating on the plunger avoids eroding and results in less friction.
- Baked enamel finish for increased corrosion resistance.
- High flow ZG 3/8” male coupler & dust cap included in all cylinders.
- High strength alloy steel for durability.
- Compact, Flat design for use in confined areas where other Cylinders will not fit.
- Customized cylinders can be made against order.
Brewdets Hydraulic Cylinder Low Height 100 Ton FPY100D
