- Brewdets Store is your trusted destination for industrial hydraulic tools, equipment, and accessories. We deliver premium-quality hydraulic solutions at competitive prices, backed by a 2-year warranty and our commitment to 24-hour technical support and after-sales service.
click image to preview
activate zoom
| Code Product | RC-101 |
| Stock | Available (100) |
| Category | Hydraulic Jack, Single Acting |
Price Exclude PPN 11%
- Maximum Operating Pressure (bar) : 700
- Capacity Class (tonnage) : 10
- Maximum Cylinder Capacity Advance (kN) : 101
- Stroke (mm) : 26
- Collapsed Height A (mm) : 90
- Extended Height B (mm) : 116
- Return Type : Single-Acting, Spring Return
- Plunger Type : Solid
- Material : Steel
- Cylinder Effective Area Advance (cm2) : 14,4
- Oil Capacity Advance (cm3) : 38
- Surface Treatment : Paint
- Coupler : CR400 Coupler
- Weight (kg) : 1,8

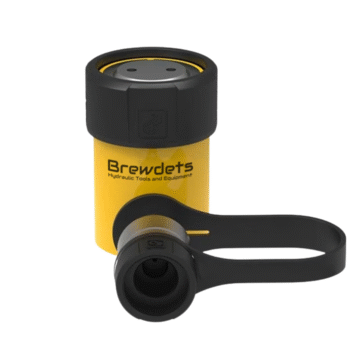

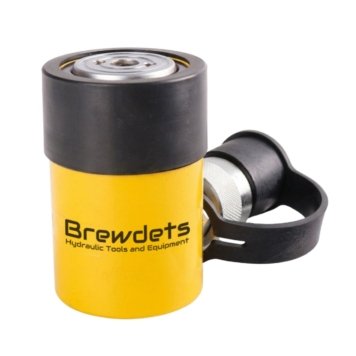

Hydraulic Cylinder Single Acting 10 Ton
Brewdets Hydraulic Cylinder Single Acting
Hydraulic Cylinder Single Acting 10 Ton | RC-TRIO is the next generation of the legendary RC-Series single acting hydraulic cylinders. These hydraulic jacks include many advanced features to ensure superior durability, versatility, and productivity.
A pre-tensioned spring provides fast plunger retraction and enhanced productivity. The robust bearing system features composite wear bands and a hardened stop ring to resist side-load which minimizes damage and repairs. The plunger wiper, high-grade polyethylene seals and tough external finishes also help towards an extended service life.
With so many hydraulic cylinder models to choose from, we’re confident you’ll find the perfect match for your applications, and if you already own prior RC-Series cylinders, the good news is the new cylinders share the same familiar dimensions and threads for full compatibility.
