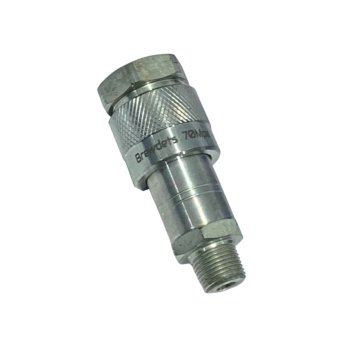

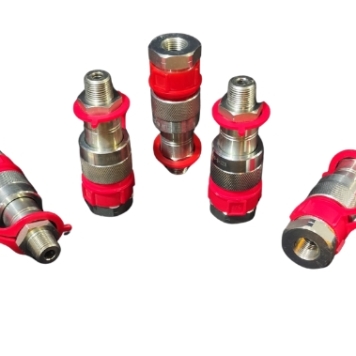

Brewdets Hydraulic Quick Coupler 3/8 NPT Male & Female Completed Set 700 BAR CQC38
Rp 238.000| Kode | CQC38 |
| Stok | Tersedia (100) |
| Kategori | Couplers, Hydraulic Accessories |
Price Exclude PPN 11%
- Model: CQC38
- Type: Quick Coupler Set (Male & Female)
- Thread Size: 3/8" NPT (Male Thread)
- Maximum Working Pressure: 700 BAR (10,000 PSI)
- Connection Type: Push-to-connect / quick release
- Material: Hardened carbon steel / Chrome-plated steel
- Seal: NBR / Viton (optional, depending on the application)
- Operating Temperature: -20°C to +100°C
- Valve Design: Non-spill, ball-lock mechanism
- Locking System: Ball detent/sleeve lock for added security
- Function: Automatically closes when removed to prevent oil leakage
Brewdets Hydraulic Quick Coupler 3/8 NPT Male & Female Completed Set 700 BAR CQC38
Brewdets Hydraulic Quick Coupler 3/8 NPT Male & Female Completed Set 700 BAR CQC38
Brewdets Hydraulic Quick Coupler
The CQC38 is a high-pressure hydraulic quick coupler consisting of a set of male and female couplings with 3/8″ NPT threaded connections. Designed for hydraulic systems operating up to 700 BAR (10,000 PSI), this coupler facilitates the quick, safe, and leak-free connection and disconnection of hydraulic hoses.
Technical Specifications:
- Model: CQC38
- Type: Quick Coupler Set (Male & Female)
- Thread Size: 3/8″ NPT (Male Thread)
- Maximum Working Pressure: 700 BAR (10,000 PSI)
- Connection Type: Push-to-connect / quick release
- Material: Hardened carbon steel / Chrome-plated steel
- Seal: NBR / Viton (optional, depending on the application)
- Operating Temperature: -20°C to +100°C
- Valve Design: Non-spill, ball-lock mechanism
- Locking System: Ball detent/sleeve lock for added security
- Function: Automatically closes when removed to prevent oil leakage
Key Features:
- Robust design for high pressure
- Quick and easy connection without tools
- Prevents oil spills when removed
- Resistant to corrosion and wear
- Suitable for repeated field or industrial use
