- Brewdets Store is your trusted destination for industrial hydraulic tools, equipment, and accessories. We deliver premium-quality hydraulic solutions at competitive prices, backed by a 2-year warranty and our commitment to 24-hour technical support and after-sales service.
click image to preview
activate zoom
| Code Product | FSH-14 |
| Stock | Available (100) |
| Category | Flange Spreader, Hydraulic Tools Equipment |
Price Exclude PPN 11%
- Maximum Operating Pressure (bar) : 700
- Maximum Spread (mm) : 80
- Power Source : Hydraulic
- Maximum Spreading Force (kN) : 125
- Maximum Spreading Force (ton) : 14
- Tip Clearance (mm) : 6
- Oil Capacity (cm3) : 78
- Weight (kg) : 7,1
Product Description

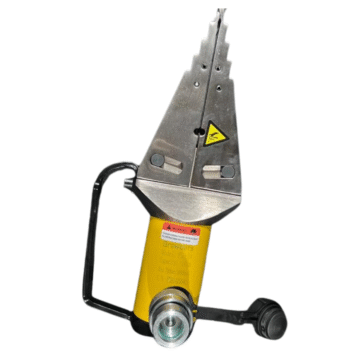

Hydraulic Wedge Spreader | The FSH14 Flange Spreader with its integral cylinder makes it easy to apply up to 14 tons of force (118 kN). It uses hydraulic force to separate the jaws – unlike mechanical equivalents (such as the FSM8) which rely on a ratchet mechanism.
The FSH14 tool fits into very small clearance gaps of 0.24 inch (6 mm). It uses a friction-free, smooth, parallel wedge movement to prevent flange damage and spreading arm failure.
- Integrated hydraulic cylinder: uses hydraulic force to open the jaws
- Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure
- Unique interlocking wedge design: no first step bending and risk of slipping out of joint
- Requires very small access gap of only 0.24 inches (6mm)
- Stepped spreader arm design: each step can spread under full load
- Few moving parts means durability and low maintenance
- Safety block SB1 included
