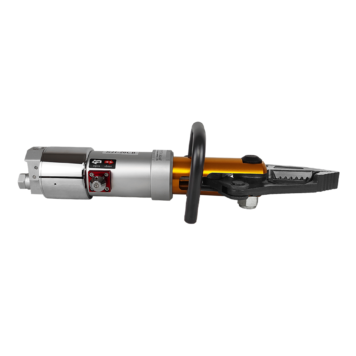

Brewdets Hydraulic Rescue Cutting Tools KJI-20CB
Rp 19.059.300| Kode | KJI-20CB |
| Stok | Tersedia (100) |
| Kategori | Cutting Tools, Hydraulic Tools Equipment |
Price Exclude PPN 11%
Crimping tools for copper and aluminum terminals, bus bar processing machines, ultra-high pressure hydraulic pumps, hydraulic piercing machines, cutting machines, bending machines, cable scissors, jack machines, hand pressing pliers, network pliers, etc. A series of tools.
Specification :
Maximum opening distance: 160mm
Rated working pressure: 63MPa
Maximum shear (Q235 material): 10mm (steel plate), 20mm} (round steel)
Shearing force: 18T
Stretching: 5.5T
Expansion distance: 160mm
Rated expansion force: 24KN
No-load opening and pressing times: 9 times
No-load closing and pressing times: 11 times
Handle force: 300N
Gross weight: 15Kg
Dimensions: L750 x W230 x H490mm (including handle size)
Brewdets Hydraulic Rescue Cutting Tools KJI-20CB
Brewdets Hydraulic Rescue Cutting Tools KJI 20CB
.
Product Features
The tool is integrated with the manual pump, no external power source is required, and the high and low pressure are automatically converted;
The shearing knife and the manual pump can be rotated $360^\circ$ with each other, which is suitable for different occasions and orientations;
The knives are made of regrindable tool steel, which can be cut, expanded and clamped;
Lightweight and easy to carry;
