- Brewdets Store is your trusted destination for industrial hydraulic tools, equipment, and accessories. We deliver premium-quality hydraulic solutions at competitive prices, backed by a 2-year warranty and our commitment to 24-hour technical support and after-sales service.
click image to preview
activate zoom
| Code Product | FSH14C |
| Stock | Available (100) |
| Category | Flange Spreader, Hydraulic Tools Equipment |
Price Exclude PPN 11%
- Item no : FSH-14C
- Capacity : 14T
- Tip Clearance : 6mm
- Max spread distance : 81mm
- Avaliable oil : According to the pump
- Weight : 8 kg

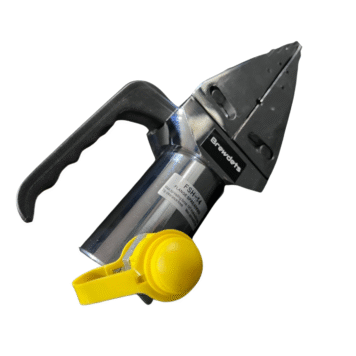

Brewdets Hydraulic Flange Spreader 14 Ton FSH14C
Brewdets Hydraulic Flange Spreader
Product Description
Friction-free, smooth and parallel wedge movement with unique interlock wedge design. Eliminates flange damage and risk of spreading arm failure.
Stepped spreader arm design – each step can spread under full load.
Requires very small access gap of only 6 mm.
Includes safety block and stepped blocks.
Self-contained Hydraulic Wedge Spreader FS-14
- Manual hydraulic operation.
- Use stepped blocks to increase wedge opening up to 81 mm.
- Safe and reliable hydraulic system.
- Hydraulic Wedge Spreader FSH-14
- Use stepped blocks to increase wedge opening up to 81 mm.
- Supplied with ZG 3/8 male coupler and dust cap.
- Operated by hydraulic pump with rated pressure of 700 bar.
Kunjungi Laman Berikut untuk Info Sewa Hydraulic
